High-Speed Transceiver Characterization with the Xilinx Virtex-7 FPGA WS7203A

A Comprehensive Connectivity Kit for Evaluating 12.5Gbps GTX Transceivers

The WS7203A – A Customizable Derivative of Xilinx’s VC7203

Product Overview

The WS7203A – A Customizable Derivative of Xilinx’s VC7203

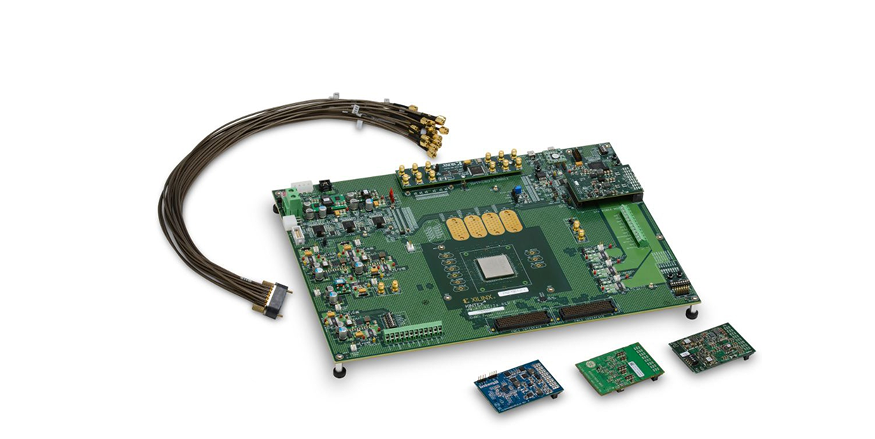

The Xilinx Virtex-7 FPGA WS7203A is a high-performance connectivity and characterization platform optimized for evaluating and testing high-speed transceivers. As a derivative of the AMD Virtex™ 7 FPGA VC7203 Characterization Kit, the WS7203A supports the XC7VX690T FPGA and is designed for applications that demand extensive transceiver evaluation and signal integrity testing.

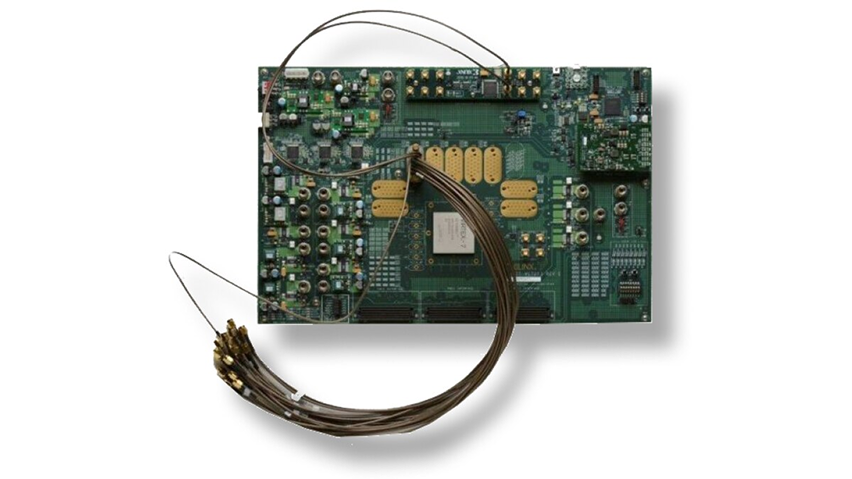

With 28 GTX transceivers capable of 12.5Gbps, integrated Bit Error Ratio Test (IBERT) demonstration compatibility, and industry-standard Samtec BullsEye connectors, this platform provides an ideal hardware environment for transceiver characterization. It supports evaluation using both Vivado™ and ISE™ design suites, ensuring flexibility for developers working on custom applications.

Whizz Systems offers full customization services to tailor this platform to your specific application needs.

Divider

Whizz Systems specialize in transforming development kits into fully productized, market-ready solutions for a wide range of industries

Divider

Key Features & Benefits

Optimized for High-Speed Transceiver Evaluation & Customization


FPGA – Virtex-7 XC7VX690T


Transceivers – 28 GTX transceivers at 12.5Gbps


Networking & Connectivity – Nine Samtec BullsEye connector pads, two differential MRCC SMA inputs, USB-to-UART bridge


Clocking 200MHz fixed LVDS oscillator, SuperClock-2 module, differential SMA clock inputs


Display & Indicators – Power status LEDs, DIP switches, push buttons, general-purpose LEDs


Expansion – Three VITA 57.1 FMC-HPC connectors


Configuration –Digilent USB JTAG programming port, System ACE™ SD controller


Control I/O– I2C bus for additional system control


Power – PMBus connectivity for real-time power management


Customization Options

Productize Your Development Kit for Your Applications

Whizz Systems has been delivering reference designs and customized FPGA solutions across various industries. Our experience in these sectors enables us to take your development kit and productize it to meet the specific challenges and performance requirements of your industry.

Custom Transceiver Testing Configurations

Custom Transceiver Testing Configurations

Modify signal routing for specific test environments.

Integration with High-Speed Optical or Backplane Systems

Integration with High-Speed Optical or Backplane Systems

Adapt BullsEye connectors to suit proprietary test setups.

Enhanced Clocking Solutions

Enhanced Clocking Solutions

Implement programmable oscillators for specialized applications.

Firmware & Software Customization

Firmware & Software Customization

Develop specialized firmware and IBERT enhancements for improved testing.

Additional Expansion & I/O Adjustments

Additional Expansion & I/O Adjustments

Modify FMC-HPC connections and integrate additional peripherals.

Power & Thermal Optimization

Power & Thermal Optimization

Implement enhanced power monitoring and cooling strategies.

Trusted Expertise, Backed by Collaboration

Trusted Expertise, Backed by Collaboration

Leverage Our Proven Industry Partnerships for Your Product

When you work with Whizz Systems, you gain access to a trusted partner with deep expertise in AMD Xilinx FPGA platforms. Our 25 years experience of servicing AMD/Xilinx in developing reference designs, evaluation kits, and connectivity solutions allows us to bring industry-leading experience to your project.

We understand the architecture, design methodologies, and best practices used in AMD Xilinx-based solutions because we’ve worked directly with them. Now, we’re extending that expertise to you—whether you need custom FPGA solutions, modifications to existing development kits, or full productization of your design.

Looking to Productize Your Dev Kit? Let’s Build It Together!
