How Whizz Systems Delivers: End-to-End Product Manufacturing Reliability

The Challenge: Why PCBA Reliability Demands a Systematic Approach

Printed Circuit Boards are the nervous system of every modern electronic product — from consumer devices and industrial equipment to medical systems and defense electronics. A single reliability failure can cascade into costly product recalls, warranty claims, brand damage, or safety incidents. Yet reliability is not a single-point check. It is the cumulative result of hundreds of engineering decisions made across design, sourcing, manufacturing, testing, and logistics.

Compounding this challenge are increasingly demanding regulatory environments (RoHS-3, REACH, IPC standards), shrinking product lifecycles, and growing customer expectations for zero-defect delivery. Achieving this level of reliability requires a structured, repeatable, and data-driven approach — not ad-hoc inspection.

Whizz Systems addresses this complexity with a holistic reliability framework anchored in three core commitments:

• Customer-First Requirements: Every reliability criterion is calibrated to the actual functionality and performance expectations of the customer — not generic industry defaults.
• Standards Compliance: All processes align with IPC (Association Connecting Electronics Industries) guidelines, ensuring designs meet industrial rules, quality benchmarks, and safety norms.
• Environmental Resilience: Temperature variation, humidity, mechanical vibration, and other real-world stressors are systematically validated throughout the entire product lifecycle.

Reliability is not a final inspection step — it is an engineering discipline woven into every phase of product development at Whizz Systems

Pillar 1: Global Supply Chain Management

Sourcing Quality from the Ground Up

Reliability starts long before a single component is placed on a board. The quality, authenticity, and lifecycle status of sourced components directly determines the reliability ceiling of any electronic product. Counterfeit parts, unqualified suppliers, and obsolete components are among the leading root causes of field failures in contract-manufactured electronics.

Whizz Systems operates a four-phase global supply management process that systematically eliminates component risk and ensures uninterrupted, compliant supply — regardless of market conditions.

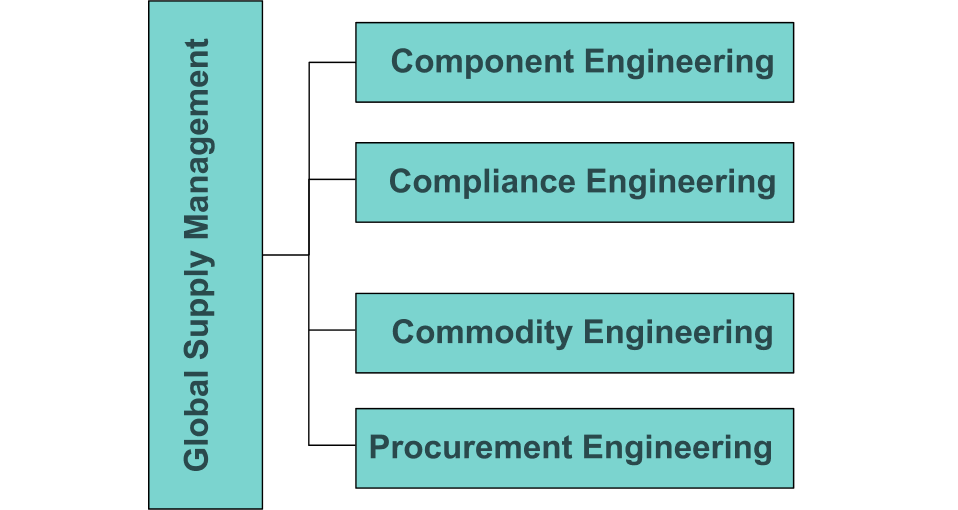

The Four-Phase Supply Management Framework

By qualifying vendors against proven performance records and continuously monitoring component lifecycle status, Whizz Systems eliminates the hidden reliability risks that commodity sourcing routinely introduces. Every component that enters production has been verified, qualified, and de-risked.

Pillar 2: Design for Excellence (DFX)

Engineering Reliability Before Manufacturing Begins

The most cost-effective way to improve manufacturing reliability is to resolve potential issues at the design stage — before a single board is fabricated. Industry data consistently shows that defects caught during design review cost a fraction of what they cost to fix during manufacturing, and a tiny fraction of what they cost in the field.

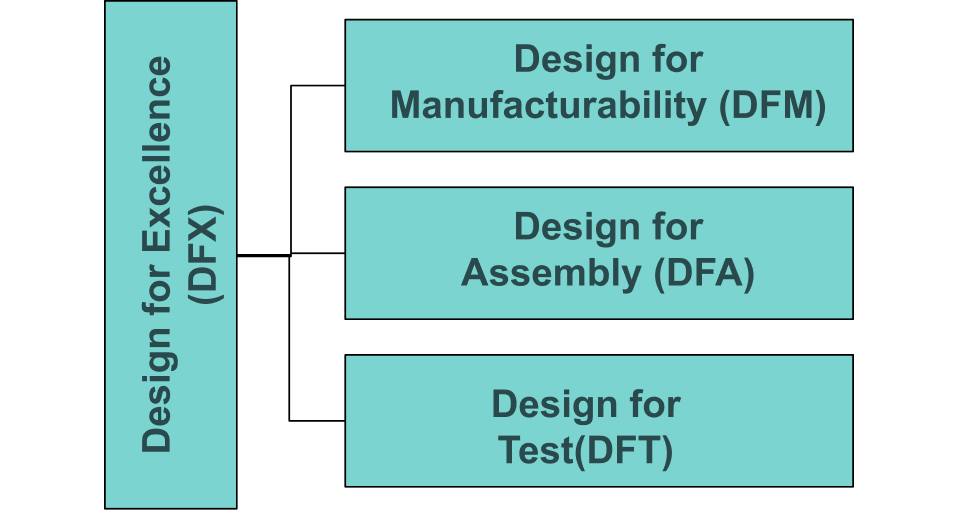

Whizz Systems integrates DFX (Design for Excellence) analysis into every product development cycle, providing a structured engineering review across three critical dimensions: DFM, DFA, and DFT.

Design for Manufacturability (DFM)

DFM analysis validates that board designs can be reliably produced at scale. Whizz engineers systematically review drill accuracy and signal layer integrity, power and ground plane distribution, soldermask application accuracy, silk screen label precision, board dimension validation, micro via reliability, and penalization strategies to mitigate production risk.

Design for Assembly (DFA)

DFA ensures components can be assembled accurately and efficiently. The analysis covers component placement feasibility, padstack design for proper pad placement, solder paste volume and application accuracy, and pin-to-pad alignment to guarantee precise component integration at production speeds.

Design for Test (DFT)

DFT analysis confirms the assembled product can be tested comprehensively. Whizz engineers conduct test point analysis to ensure strategically positioned access points enable thorough functional verification — reducing the risk of undetected defects shipping to the customer.

DFM + DFA + DFT together create a closed-loop design review system that identifies and resolves manufacturability issues before they translate into defects, rework costs, or field failures.

Pillar 3: Failure Mode & Effects Analysis (FMEA)

Proactive Risk Elimination Powered by Data

Even the most carefully designed products can harbor latent failure risks. FMEA is the industry-standard methodology for systematically surfacing and eliminating these risks before they reach the production line or the customer.

Whizz Systems uses Relyence® FMEA — an industry-leading platform trusted by aerospace, defense, and medical device manufacturers — to analyze every potential failure mode in both components and assembly processes.

The Whizz FMEA Methodology

• System Decomposition: The overall design and manufacturing process is broken down into subsystems and individual components for granular analysis.
• Failure Mode Identification: Each subsystem is analyzed for every possible failure mode and its downstream effects on product performance and safety.
• Severity Prioritization: Failure modes are ranked by severity score, directing engineering resources to the highest-impact risks first.
• Design & Process Refinement: FMEA insights directly drive improvements to product designs and manufacturing workflows — measurably increasing MTBF and reducing warranty costs.

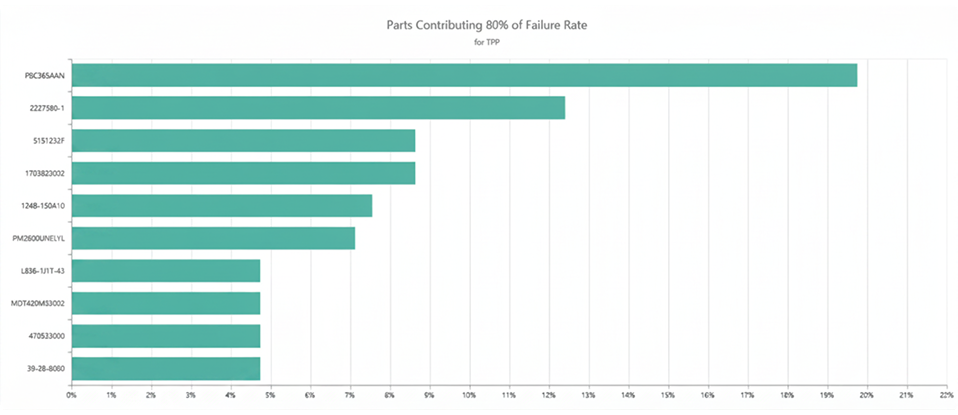

Sample FMEA Sheet

This data-driven approach transforms reliability from a reactive exercise into a proactive engineering discipline — systematically catching potential failures before they ever reach the customer. Products engineered through this FMEA process consistently achieve higher MTBF scores and lower warranty return rates.

Pillar 4: Thermal Profiling & Reflow Soldering Optimization

Perfecting Every Solder Joint — Every Time

Solder joint quality is one of the single most critical determinants of PCB reliability in the field. Cold solder joints, bridging, and incomplete reflow are among the most common causes of early-life product failures — and they are almost entirely preventable with rigorous process control.

In reflow soldering, maintaining temperature uniformity across an entire PCB is challenging due to mass variation between components, board size differences, and thermal shadowing effects. Without active profiling and optimization, temperature gradients across the board lead to inconsistent joint formation.

The Whizz Thermal Profiling Setup

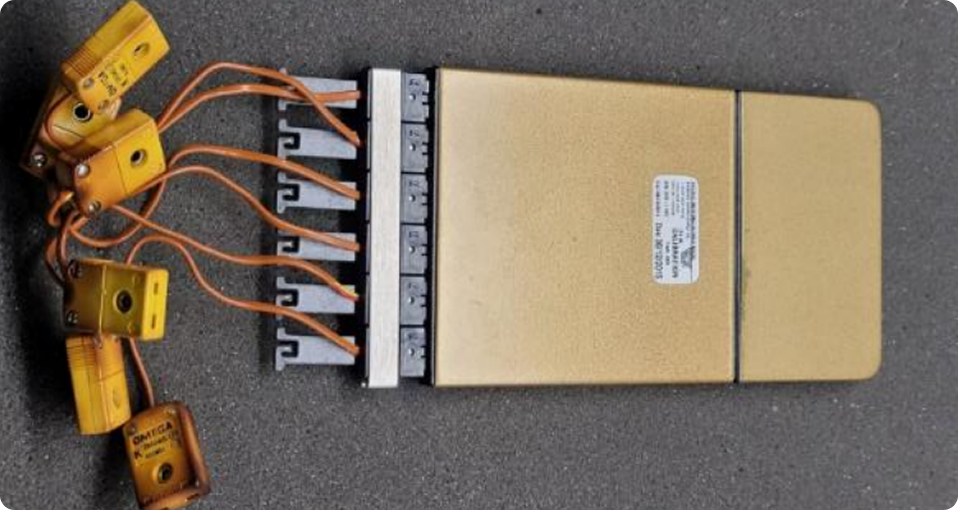

• ECD Gold M.O.L.E Thermal Profiler — industry-standard hardware providing real-time temperature measurement at multiple board locations simultaneously.
• Precision Thermocouples — strategically placed measurement points across the board surface to capture the full thermal map.
• Temperature Data Logger — continuous capture during each oven pass, generating detailed thermal curve data for engineering analysis and optimization.

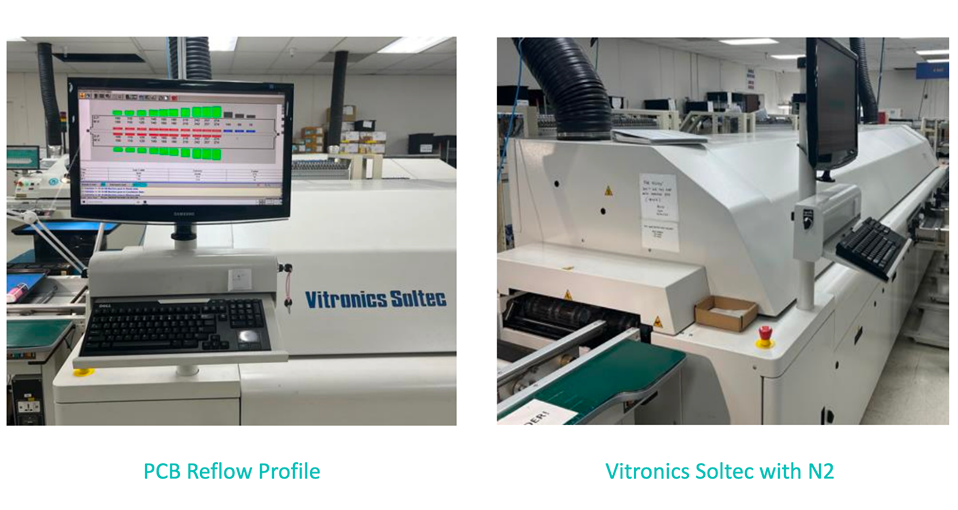

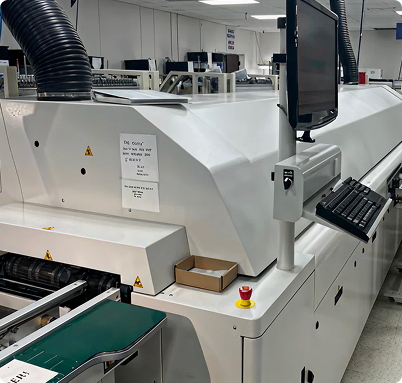

The complete profiling setup is passed through the Vitronics Soltec reflow oven under a controlled nitrogen (N2) atmosphere. Engineers analyze the resulting thermal curve and optimize zone temperatures, conveyor speed, and atmospheric parameters to achieve uniform, repeatable heat distribution across the entire board surface.

Optimized reflow profiling eliminates the primary root cause of solder joint failures — producing consistent, high-quality joints that perform reliably across the full operational life of the product.

Pillar 5: Advanced PCBA Inspection Capabilities

Detecting Defects Invisible to the Human Eye

Whizz Systems deploys a three-tier automated inspection strategy that catches defects at every stage of the assembly process — well before they have any chance of reaching the customer. Each layer targets a different failure mode at a different stage of production.

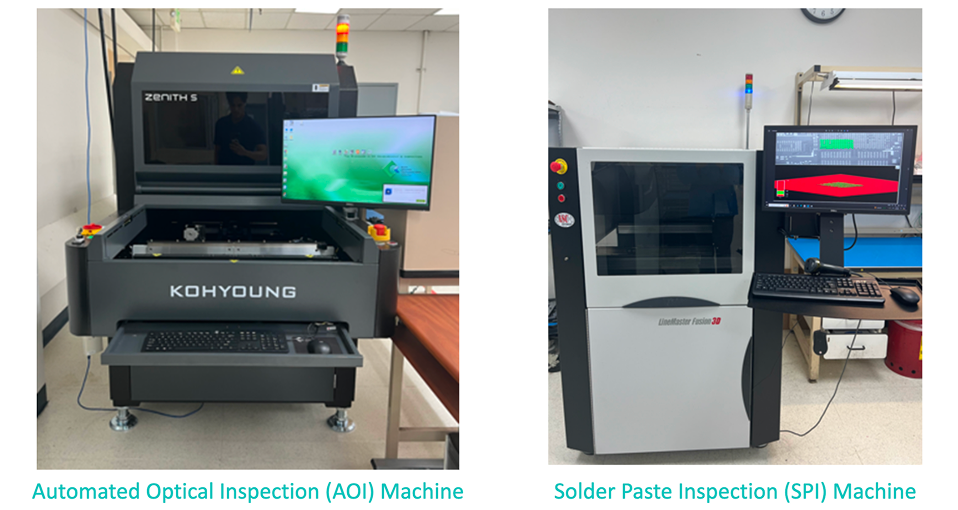

Tier 1: Solder Paste Inspection (SPI)

Applied immediately after solder paste printing, SPI precisely measures paste volume, area, height, and placement accuracy for every pad on the board. Catching paste defects at this stage — before components are placed and before reflow — is significantly more cost-effective than downstream rework. Insufficient or misplaced paste is a direct predictor of solder joint failure.

Tier 2: Automated Optical Inspection (AOI)

AOI is deployed twice in the Whizz production line: pre-reflow (verifying component placement accuracy and polarity) and post-reflow (inspecting solder joint formation and assembly quality). The system automatically detects misaligned components, missing parts, polarity errors, tombstoning, insufficient solder, and bridging — defects that manual inspection routinely misses, especially on fine-pitch components.

Tier 3: 3D X-Ray Inspection

For hidden solder joint structures — such as Ball Grid Array (BGA), QFN, and other bottom-terminated components — Whizz Systems uses cutting-edge 3D X-ray technology (Nordson DAGE XD7600 Ruby X-Plane). X-ray inspection penetrates component bodies to reveal solder voids, bridging, incomplete reflow, and cold joints that no optical inspection method can detect.

This capability is critical for high-density, high-reliability board assemblies where hidden defects carry the highest failure potential — and where traditional inspection tools are completely blind.

Three overlapping inspection layers — SPI, AOI, and 3D X-ray — provide defect coverage that no single inspection method can achieve alone.

Pillar 6: Reliability Testing & Validation

Simulating Years of Real-World Use Before Shipment

Inspection confirms what was built. Reliability testing validates how long it will perform in the field. Whizz Systems subjects every product to a comprehensive test regimen that exposes weaknesses under conditions far more demanding than typical operating environments — because if a product is going to fail, it is far better to find that out in our lab than in your customer's hands.

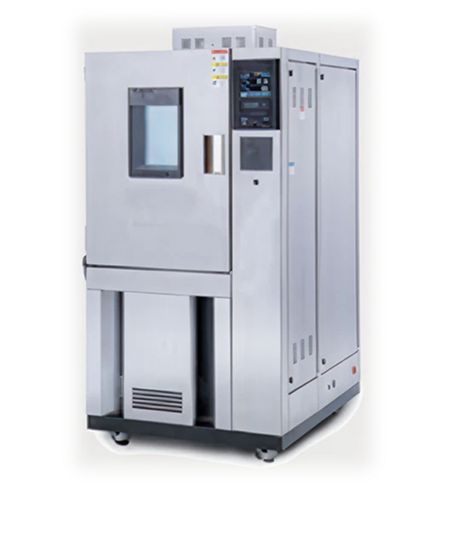

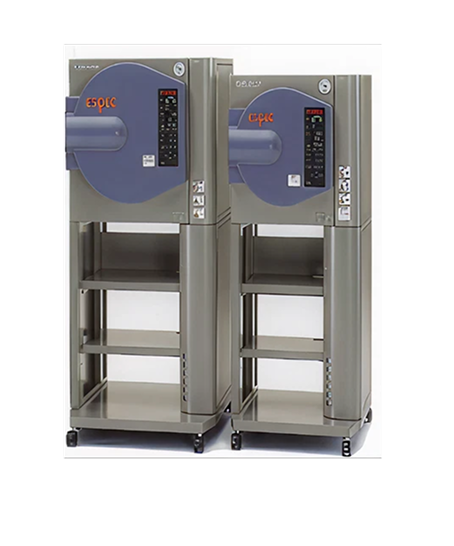

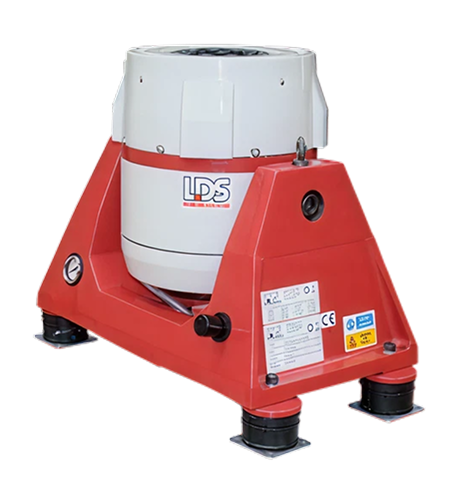

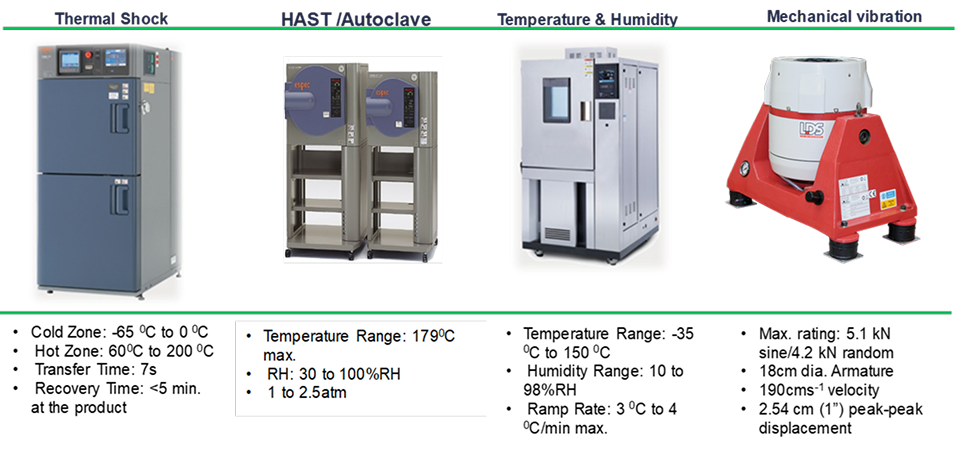

Reliability Design Testing (RDT) Equipment

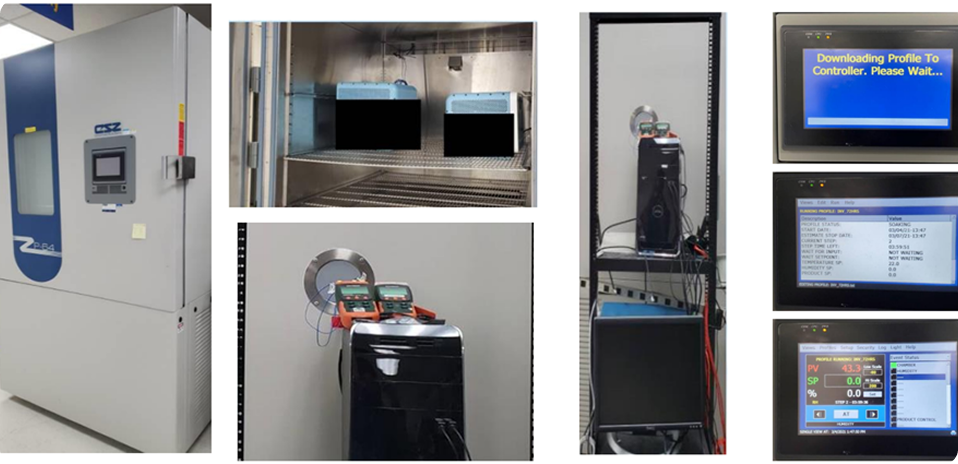

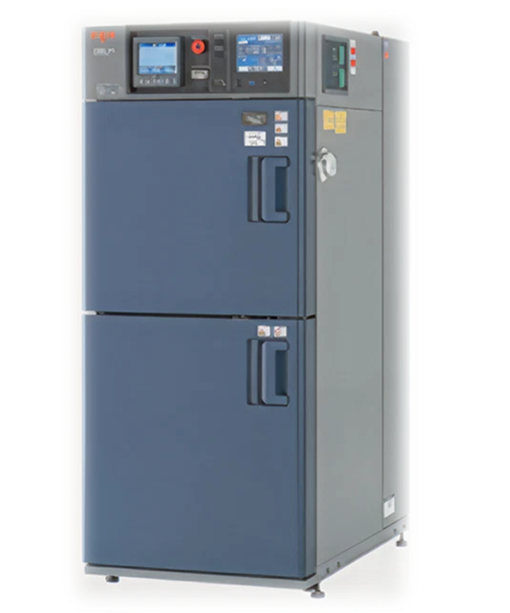

Environmental Chamber Tests

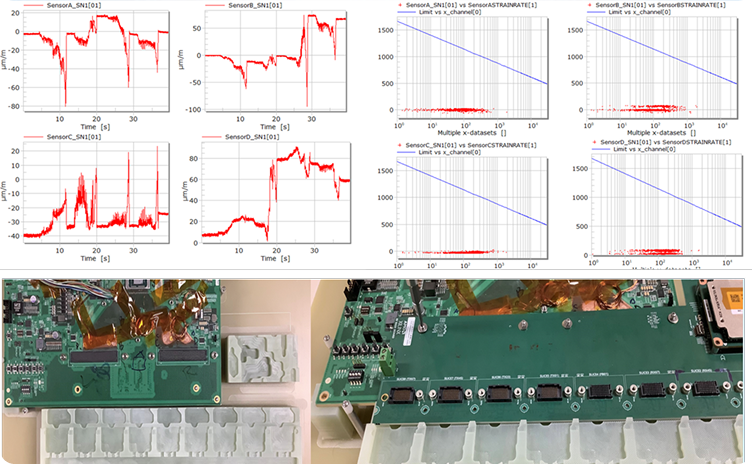

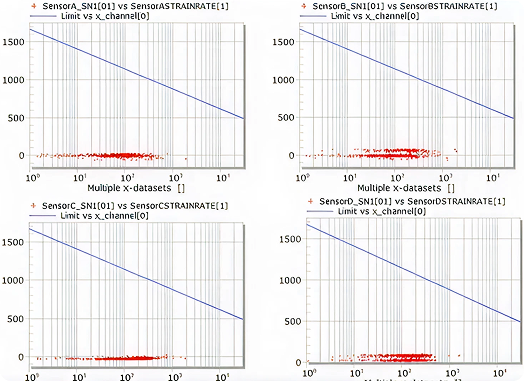

Strain Gauge & Deflection Testing

In addition to environmental and mechanical testing, Whizz Systems creates mockup PCBA assemblies and chip packages specifically to optimize reflow solder parameters before committing production boards. These controlled mockups allow engineers to fine-tune process settings under real production conditions — reducing first-article risk and ensuring process stability from day one of volume production.

Pillar 7: Engineering-Grade Packaging Design

Protecting Your Product Through Every Mile of the Supply Chain

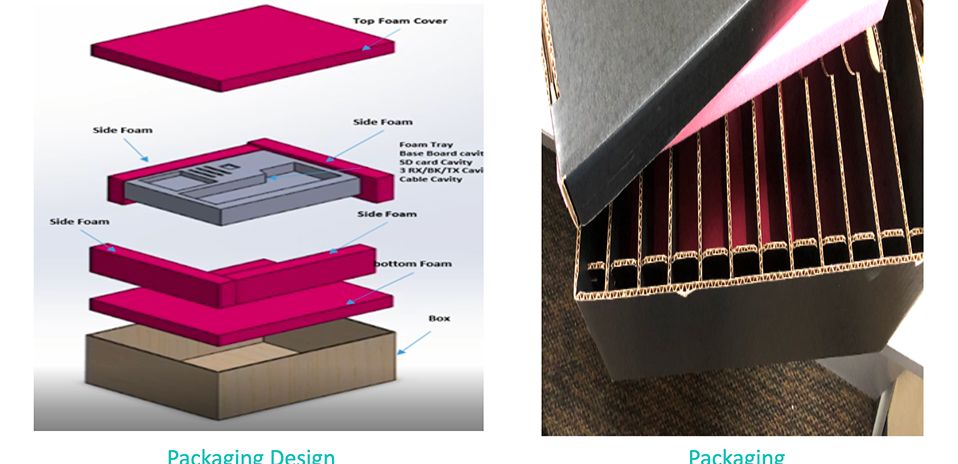

A perfectly manufactured product can still arrive damaged if packaging is treated as an afterthought. Whizz Systems designs packaging as an engineering discipline — applying the same structured, validated approach to packaging that we apply to every other phase of the product lifecycle.

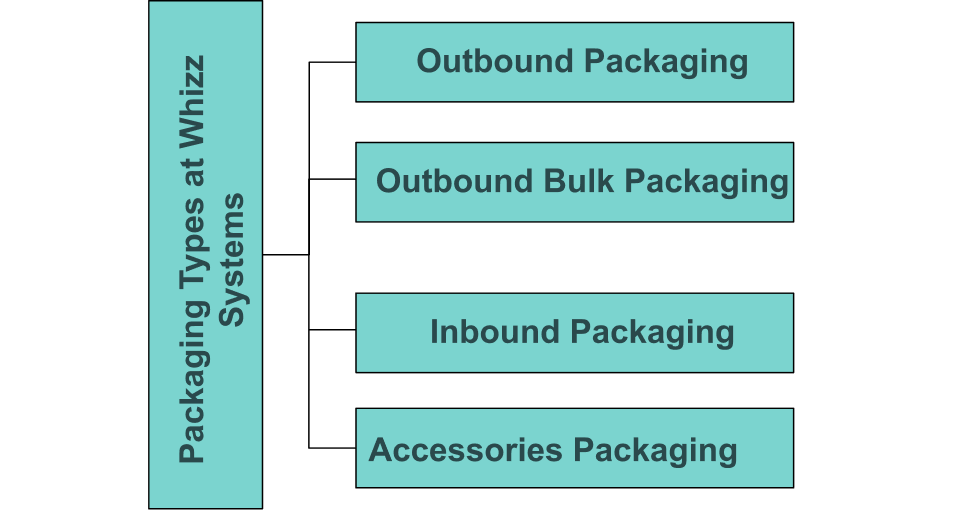

Whizz packaging solutions are engineered to maintain product integrity from the production floor to the customer's facility, covering four packaging categories — Outbound, Outbound Bulk, Inbound, and Accessories — each designed for the specific protection requirements of its use case.

• Shock & Vibration Absorption: Custom foam geometries, ESD-safe trays, and structural outer cartons that dissipate mechanical energy from handling drops, conveyor impacts, and transportation vibration.
• Environmental Shielding: Protection against humidity, electrostatic discharge (ESD), contamination, and temperature excursions for sensitive PCB assemblies in transit.
• ISTA-Certified Drop Testing: Every packaging design is validated with drop tests following ISTA (International Safe Transit Association) standards — the global benchmark for transit packaging performance.

Every Whizz Systems product ships with engineered, ISTA-validated packaging — because your product's quality journey doesn't end at our shipping dock.
