Signal Integrity Challenges in High-Speed AI Hardware Design

In NextGen hardware systems, efficient inter-module communication presents a complex engineering challenge.

At high frequencies, electrical signals behave more like electromagnetic waves than simple voltage levels. This introduces issues such as:

• Trace impedance mismatches
• Signal reflections
• Power supply noise
• Crosstalk between adjacent traces
• Electromagnetic interference (EMI)

If not addressed properly, these problems can cause data corruption, system instability, and increased bit error rates.

One of the most common issues in high-speed PCB design is signal degradation. As signals travel through conductive materials, they lose strength due to resistive losses, parasitic capacitance, and inductance. These effects distort signal waveforms and reduce data reliability.

Increasing Complexity in Dense AI Hardware

In AI hardware architectures, the problem becomes even more complex due to dense packaging and high I/O speeds. With tightly packed components and extremely fast switching frequencies, routing signals without interference becomes significantly more difficult.

Additionally, power integrity and signal integrity are closely related. Fast switching currents in high-performance processors and accelerators can introduce noise into the power distribution network, which in turn affects signal stability.

Without a comprehensive signal integrity strategy that includes design optimization, advanced materials, and simulation analysis, hardware teams risk higher development costs, performance limitations, and delayed product launches.

Whizz Systems' Approach to High-Speed Signal Integrity Engineering

Precision Signal Engineering for Next-Generation Hardware

At Whizz Systems , our approach to signal integrity in High-speed ai hardware engineering expertise with advanced simulation and design optimization techniques.

Our engineers implement architecture-aware signal integrity strategies that address transmission line effects, impedance control, noise reduction, and high-speed routing challenges from the earliest stages of hardware development.

Design Optimization for High-Speed PCB Performance

Effective signal integrity techniques begin with a well-designed PCB stackup, which directly affects impedance control and signal propagation.

Material selection plays a critical role in maintaining signal quality. Depending on performance requirements, materials such as:

• FR4
• Megtron
• EM-892
• Astra MT77

May be used to optimize electrical performance.

Additional design practices include:

• Controlled impedance routing
• Optimized trace lengths
• Reduced via inductance with 3D via structures
• Proper grounding strategies
• Strategic decoupling capacitor placement

Together, these techniques reduce signal loss, reflections, and electromagnetic interference, ensuring stable high-speed communication.

Advanced Simulation and Signal Analysis

Modern signal integrity simulation tools play a crucial role in identifying potential issues before PCB fabrication.

Using simulation environments, engineers can:

• Analyze signal propagation behavior
• Detect impedance discontinuities
• Evaluate noise coupling between traces
• Perform Time Domain Reflectometry (TDR) analysis
• Conduct frequency-domain modeling

This predictive approach allows teams to resolve signal issues before Gerber tape-out, significantly reducing costly design iterations.

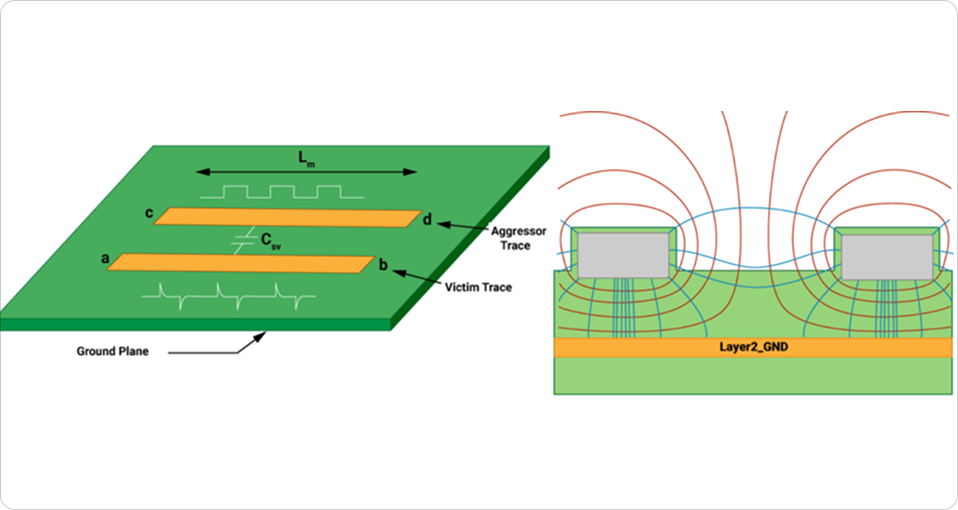

Crosstalk Mitigation and EMI Control

In dense AI hardware systems, crosstalk and EMI can significantly affect signal quality.

Whizz Systems implements routing strategies that include:

• Optimized spacing between high-speed traces
• Ground reference planes for signal isolation
• Shielding structures using ground vias
• Controlled trace coupling

These techniques reduce unwanted electromagnetic coupling and ensure reliable high-speed data transmission across complex circuit boards.

Critical Signal Integrity Considerations for High-Speed Hardware Projects

Organizations developing AI hardware, high-speed communication systems, or advanced electronic platforms should evaluate several signal integrity factors early in the design process.

Early Signal Integrity Planning

Signal integrity challenges are most effectively addressed during the architecture and layout stages of hardware development.

Engaging SI experts early allows teams to design systems that naturally minimize noise, impedance mismatches, and routing inefficiencies, preventing expensive redesign cycles.

Application-Specific Design Strategies

Every system has unique requirements depending on operating frequency, voltage levels, and performance targets.

Whether the project involves AI accelerators, telecommunications hardware, or consumer electronics, engineers must tailor design strategies, materials, and simulation tools to the specific operating environment.

Validation Through Testing and Measurement

Post-design testing ensures that signal integrity assumptions hold in real-world conditions.

Advanced validation methods may include:

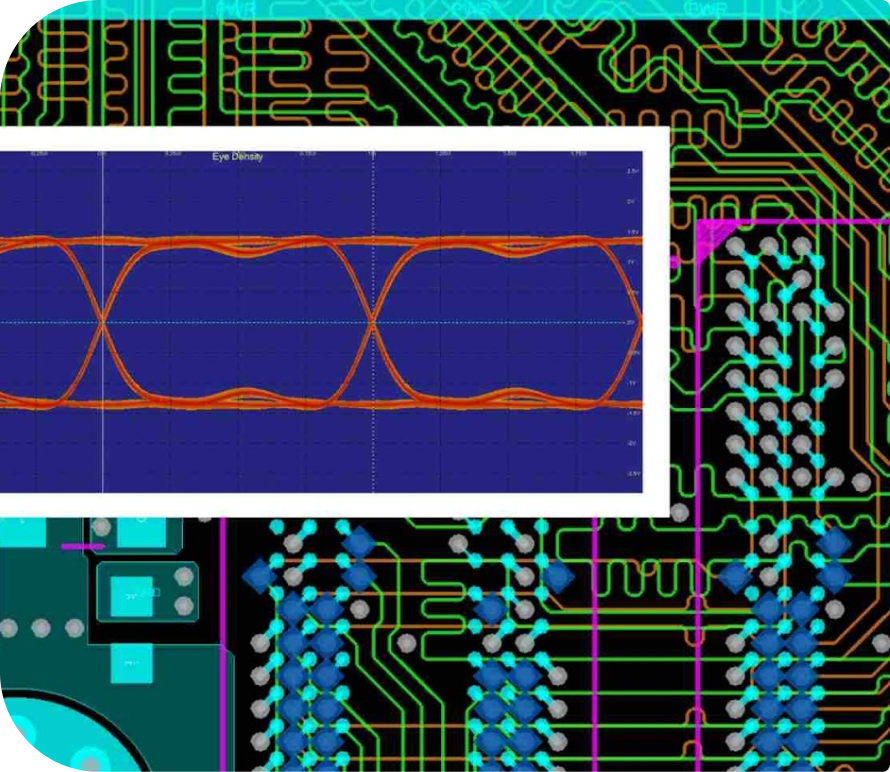

• Eye-diagram analysis
• Signal quality measurements
• Time-Domain Reflectometry (TDR)

These methods help detect signal degradation issues that may not appear during initial simulations.

Evaluating Total Cost of Ownership

While implementing advanced signal integrity techniques may increase initial design costs, the long-term benefits far outweigh the investment.

Poor signal integrity can result in:

• Higher system error rates
• Product reliability issues
• Warranty claims
• Brand reputation damage

Investing in robust signal integrity engineering ensures better product performance, improved reliability, and reduced long-term operational costs.
